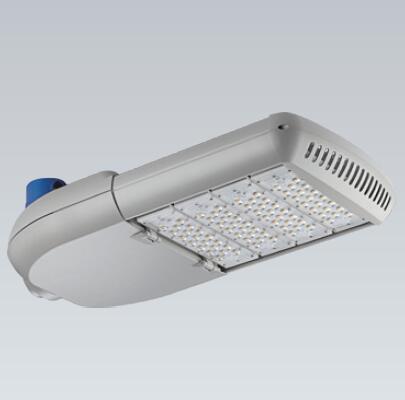

LED Street Light(Apollo)


Item No.	Light Bars	No.of LEDs	Current 700mA Tj 25°C
Item No.	Light Bars	No.of LEDs	LED Consumption(w)	System Consumption(W)	Typical Flux 5000K
RL2R028A2	2	28	58.8	61.25	5566
RL2R042A2	3	42	88.2	91.88	8349
RL2R056A2	4	56	117.6	122.5	11132
RL2R070A2	5	70	147	153.13	13915
RL2R084A2	6	84	176.4	183.75	16698
RL2R098A2	7	98	205.8	214	19473
RL2R112A2	8	112	176.4	244	22257
Color Rendering Index	>75
Power Factor	>0.95
Luminaire Efficiency	>85%
Ambient Environment	Temp:-40~+50°C；Humidity:10%~95%
Lifespan	>50000 hrs

Product Description:

Apollo LED street light series are Kingsun recently newly released most complete and most functional road lighting in the industry, embracing the typical Europe and America solid and slim style, flexible current driving range, thermal and optical integrated modular system, multi-options of light distribution, free tool installation and maintainence,full solution with wide range applicable installation inter-face and various control methods.

Product Characteristics:

1.Applied with top grade LED from Cree or Lumileds

2.Non-image optics system, improves lumen output ratio

3.Modular design, carrying big range from power from 30W to 240W

4.High efficiency driver system from Philips/Advance

5.Luminaire efficiency up to 90 lm/W ± 3lm

6.Open air ventilation design, good heat dissipation function

7.Innovative and unique design of rotating arm branch, tilt -30 to 90 degree adjustable, compatible with the interface Φ60 and below, fit the purpose of the change or upgrade of conventional road lighting.

8."Tool free" locking design to open and close the driver compartment simply, easy installation and maintainance

9.5-year warranty

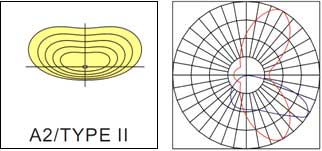

Light Distribution Curve:

LED-Street-Light
