PH20 full color outdoor LED display

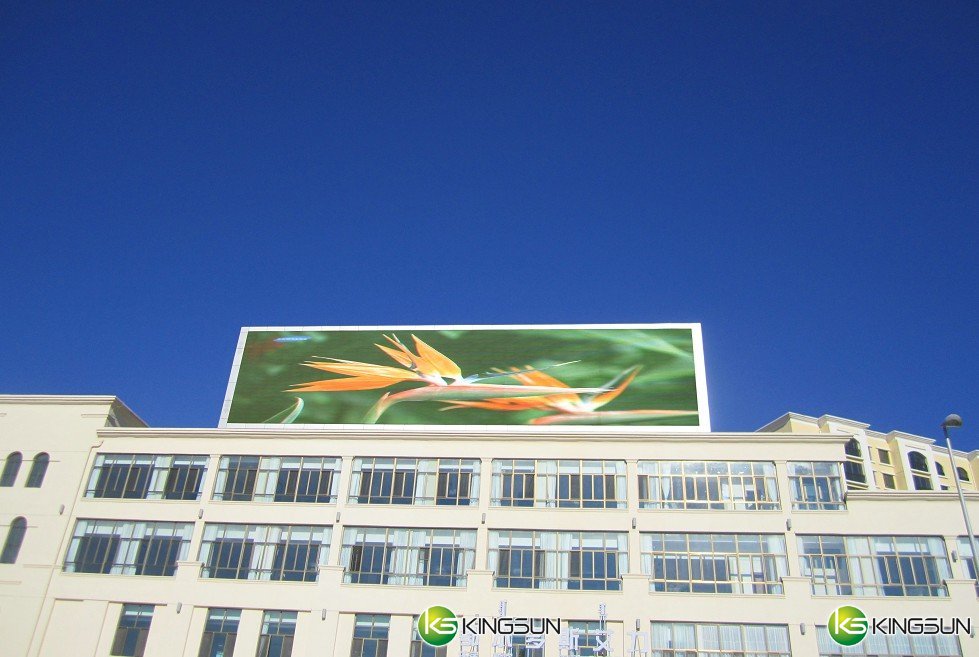

Kingsun PH20 Outdoor Advertising LED Display:
Designed to withstand adverse weather conditions and to astound audiences and make them enjoy flickering-free live videos in sharp and brilliant images. Kingsun Outdoor display solutions present the exceptional performance in crowded outdoor settings where are clearly visible, even the most complex advertising images and logos are precisely rendered.
Features:
1. With latest mask design, there’s no reflection from LED light, thus ensuring LED screen displaying effect.
2. The cabinet adopts pyrolytic coating technology, improve its antirust capacity.
3. The level up degree of our screen is strictly controlled within±0.2mm, the whole screen enjoys a good level up degree.
4. Kingsun LED display has perfect color uniformity.
5. The PCBs are processed by three proofings standard, prolong the screen life time.
6. The service efficiency of switching mode power supply gets increased sharply, thus reducing power failure.
7. Front sides of modules are sealed by superior casting glue, the rear sides are equipped with waterproof rubber ring, making LED screen fully waterproof.
8. Totally waterproof, IP65, high brightness, can work all the day and meet the demands of working in different outdoor environment.
Application: Government Square, Culture square, shopping plaza, entertainment square, business center, advertising billboard, commercial street, railway station, schoolyard ,airport, bus station, bus terminal ，bank etc.
| Specification | KINGSUN PH16 outdoor advertising LED display | ||
| LED Lights | DIP346 | ||
| Pixel Pitch | 20mm | ||
| Pixel Resolution | 2500 dots/㎡ | ||
| Pixel Composing | 1R1G1B | ||
| Module Dimension | 320mm*160mm | ||
| Module Graphic Definition | 16dots*8dots | ||
| Cabinet Dimension(W*H) | 1280mm*960mm*150mm(other sizes are customizable) | ||
| Cabinet Graphic Definition | 64dots*48dots | ||
| Single Cabinet Weight | ≤60kg/㎡ | ||
| Best Viewing Distance | 16～200m | ||
| Horizontal Viewing Angle | 120° | ||
| Vertical Viewing Angle | 60° | ||
| Average Power Consumption | 200W/㎡ | ||
| Maximum Power Consumption | ≤600W/㎡ | ||
| Graphic card | DVI | ||
| Control Method | synchronization | ||
| LED Driver | constant current | ||
| Scan mode | static | ||
| Frame Changing Frequency | ≥60Hz | ||
| Refresh Rate | ≥300Hz | ||
| Brightness | ≥7500cd/㎡ | ||
| Ingress Protection (Front/Rear) | IP65/IP54 | ||
| Operation Temperature | ~20℃～+50℃ | ||
| Operation Humidity | 10%～95% | ||
| Input Voltage | AC220V/110V±15% 47-64Hz | ||
| Gray Scale | 4096 | ||
| Brightness Adjustment | 256 level by software | ||
| System Operating Platform | WINXP、WIN2000、WIN98 etc | ||
| Support Mode | DVI、VGA、S-Video、RGBHV、COMPOSITION | ||
| Control System | DVI graphic card＋control card（gigabyte）＋optical fibre transmission（option） | ||
| NTBF | ≥15000 hours | ||
| Life Time | 100000 hours |
