Full color Indoor LED display
Kingsun full color Indoor LED displays
1. High-quality LED chips, high luminous efficiency, low working current, rich color, and concise structure.
2. All-round anti-static measures, bring down the damage to LED lights effectively, low ‘out of control’ rate, extraordinary color uniformity, maintaining favorable color balance.
3. Precise workmanship advanced processing craft, complete automatic production guarantee LED screens’ reliability, quality and life time, few cold solder joints and man-made faults.
4. The level up degree of our screen is strictly controlled within±0.2mm, the whole screen enjoys a good level up degree.
5. The luminance difference between any two LED lights is less than 20%, which can guarantee the brightness and color uniformity of the whole screen. Clear, exquisite and vivid displaying effect for image, text and video.

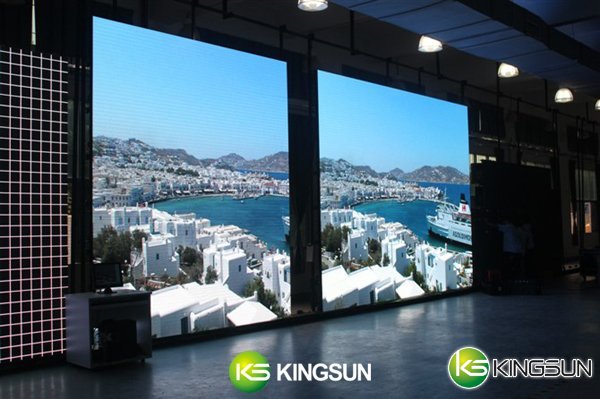

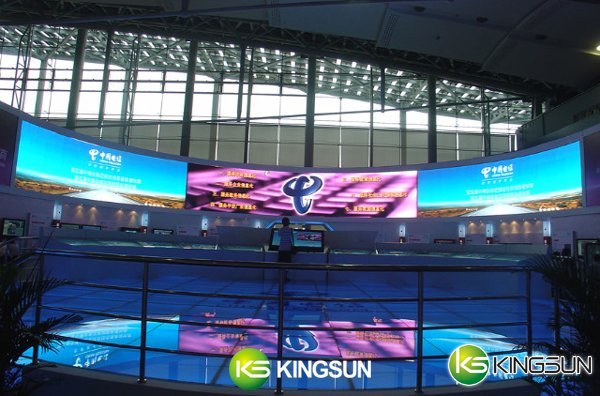

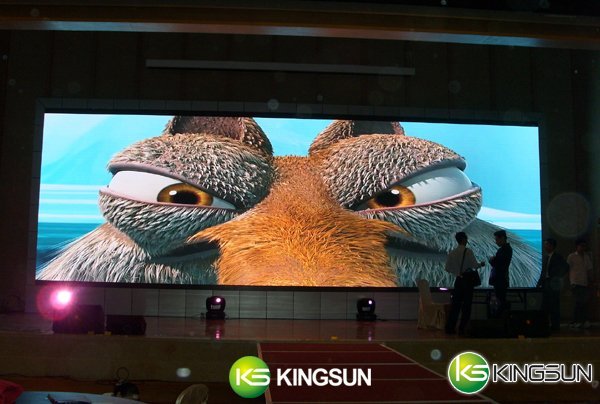

Application: Stadium, railway station waiting room, TV LIVE, LIVE concert stage, exhibition Hall, Art centre, entertainment occasions, evening gala, Mall, Airport, promotional activity, Exhibition etc.Case Reference
| Technical Data Sheet-Cabinet-based | |||||||||
| Specification | PH3 | PH4 | PH5 | PH6 | PH7.62 | PH8 | PH10 | PH12 | |
| Model | KS-I3C | KS-I4C | KS-I5C | KS-I6C | KS-I7.62C | KS-I8C | KS-I10C | KS-I12C | |
| LED Lights | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD | |
| Pixel Pitch | 3 mm | 4mm | 5mm | 6mm | 7.62mm | 8mm | 10mm | 12mm | |
| Pixel Resolution dots/㎡ | 111111 | 62500 | 40000 | 27777 | 17222 | 15625 | 10000 | 6944 | |
| Pixel Composing | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| Module Size(W*H) mm | 192*96 | 128*128 | 160*160 | 192*96 | 244*122 | 256*128 | 320*160 | 384*192 | |
| Module Resolution dots*dots | 64*32 | 32*32 | 32*32 | 32*16 | 32*16 | 32*16 | 32*16 | 32*16 | |
| Cabinet Dimension(W*H) mm | 576*576 | 512*512 | 960*960 | 768*768 | 976*732 | 1204*768 | 1280*960 | 1152*960 | |
| Cabinet Resolution dots*dots | 192*192 | 128*128 | 192*192 | 128*128 | 128*96 | 128*96 | 128*96 | 96*80 | |
| Weight | 50kgs/㎡ | 50kgs/㎡ | 50kgs/㎡ | 50kg/㎡ | 50kg/㎡ | 50kg/㎡ | 50kg/㎡ | 45kg/㎡ | |
| Best Viewing Angle | >3m | >4m | >5m | >6m | >7m | >8m | >10m | >12m | |
| Horizontal Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° | |
| Vertical Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° | 120° | 120° | |
| Average Consumption W/㎡ | 800 | 450 | 430 | 400 | 380 | 330 | 280 | 240 | |
| Max Power ConsumptionW/㎡ | ≤1000 | ≤800 | ≤800 | ≤800 | ≤700 | ≤700 | ≤700 | ≤600 | |
| Graphic card | DVI | DVI | DVI | DVI | DVI | DVI | DVI | DVI | |
| Control Method | synchronization | ||||||||
| LED Driver | constant current | ||||||||
| Scan mode | 1/16 scan | 1/16 scan | 1/16 scan | 1/8 scan | 1/8 scan | 1/4 scan | 1/4 scan | 1/4 scan | |
| Frame Changing Frequency | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | |
| Refresh Rate | ≥300Hz | ≥300Hz | ≥300Hz | ≥300Hz | ≥300Hz | ≥300Hz | ≥300Hz | ≥300Hz | |
| Brightness cd/㎡/nits | ≥2000nits | ≥2000nits | ≥2000nits | ≥2000nits | ≥1800nits | ≥1500nits | ≥1200nits | ≥1200nits | |
| Ingress Protection | IP43/IP43 | ||||||||
| Operation Temperature | -20℃～50℃ | ||||||||
| Operation Humidity | 10%～95% | ||||||||
| Input Voltage | AC220V/110V±15% 47-64Hz | ||||||||
| Gray Scale | 4096 | ||||||||
| Brightness Adjustment | 256 level by software | ||||||||
| Operating Platform | WINXP、WIN2000、WIN98 etc | ||||||||
| Support Mode | RF, DVI、VGA、S-Vide, RGB, RGBHV、COMPOSITION etc | ||||||||
| Control System | DVI graphic card＋control card（gigabyte＋optical fibre transmission（option） | ||||||||
| NTBF | ≥50000 hours | ||||||||
| Life Time | 100000 hours | ||||||||
| Software | LED Studio | ||||||||
