LED Tube Light

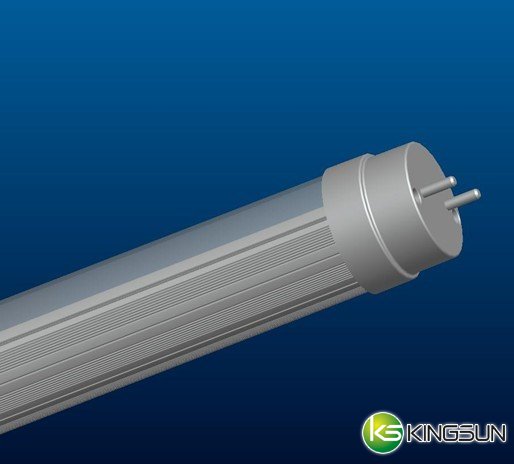

DLC VERSION LED T8 TUBE
KINGSUN Warranty Agreement 5years-DLC tube
General Information
| Product name | ST0818 TUBE |
| Model no. | ST0818 |
| Type | LED T8 tube |

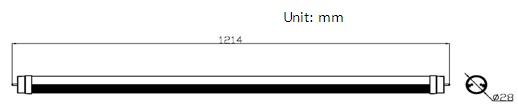

| Product dimension | Φ28 x 1214mm |
| Net weight | 0.388 kg |
| Housing material | Aluminium |
| Optic material | PC |
| Installation | G13 |
| Dimming | Non dimmable |
| IP rating | IP20 |
| Fire-resistance rating | GW750 |
| Safety Standard | UL to be in compliance |
| Operation temperature | -20~40°C |
| Lifespan | 50,000hrs |
Electrical Data
| System power | 18W |
| Input voltage | AC 90-305V |
| Rated current | 450mA |
| Rated frequency | 50/60Hz |
| Output voltage | DC 32-42V |
| Power factor | ＞0.9 |
| Driver IP | IP20 |
| Driver location | Built-in |
Light Data
| Light distribution | Symetrical （V type） | |
| Beam angle | >120° | |
| Light output | ＞1900 lm | |
| Light efficacy | ＞105 lm/W | |
| Cover | Diffused | |
| Colour rendering index | Ra>80 | |
| Colour temperature | 4000-4500K | |

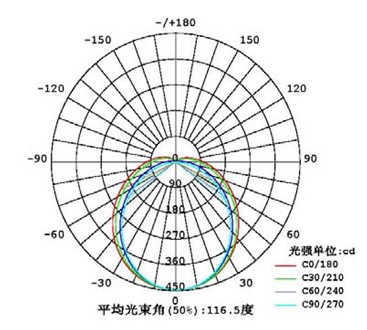

Light Distribution Curve
